Denkerzelle im Raum-in-Raum Prinzip als autarkes Raumelement

Think tank for the office in any size

Think tanks in room in room construction are suitable for many uses

The Think Tank vetroCUBE is a flexible modular system for the production of self-sufficient, soundproof and trapped room units independent of the building structure. The technology integrated in the think tank (ventilation, lighting, acoustics and electrification) enables highly flexible use of the room-in-room solution at any point in the building. Office space that cannot be used for workstations is suitable for the think tank, the room-in-room solution. In this way, the window areas remain free for workplaces, while the central zone can be used for retreat areas.

Room in room Solutions

  • Think Tank size on request
  • from telephone booth to conference room
  • office phone booth
  • meeting room
  • Think Tank as presentation room
  • Think Tank as concentration room
  • Consultant room in customer hall
  • Think Tank for the consultant room in the cash hall
  • Recreation room for production
  • Stand Up Meeting Shift change
Free-standing think tanks for consultations
Think Tanks is a freestanding solution for consultants in a large customer hall.

Think Tank Examples

For your orientation we present here the most common room in room solutions. In addition to these models, we will be happy to develop the right think tank for your needs. The room in room or think tank solutions are always made to order, so that your wishes can be taken into account without incurring costs for special solutions.

1





Type 1.1: Phone booth open

Think Tank Telephone booth free-standing
Think Tank Phone booth 2D


Think Tank without door
one person, standing
no door
B: 1000 mm
T: 1000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
no ventilation (open)

4x corner connector
1 running metre traverse without wall element
3x carrier element
3x decor panel
3x absorber shells inside
1x ceiling element A-class absorber
4x all-glass element
1x electrification unit
1x storage board with wall mounting



DWG-Download

3ds-Download

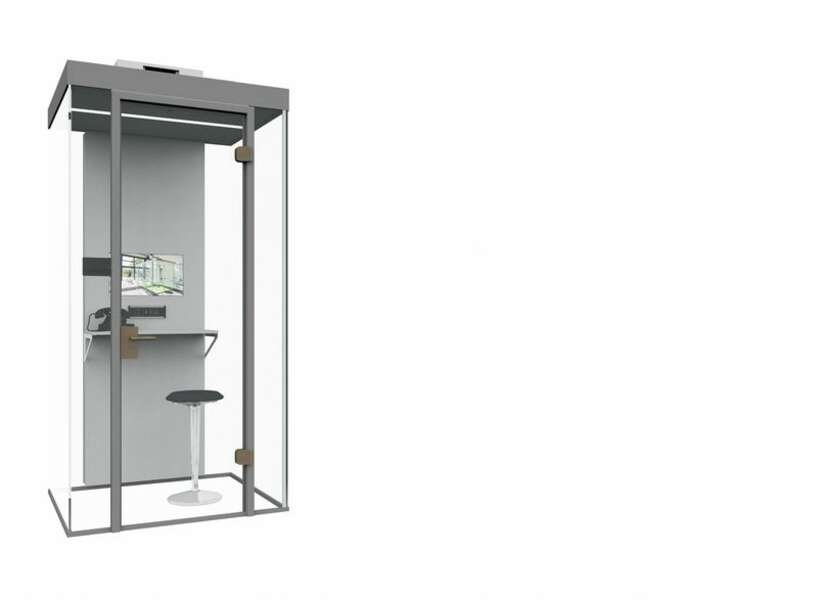

Type 1.2: Phone booth

Think Tank telephone solution in the office

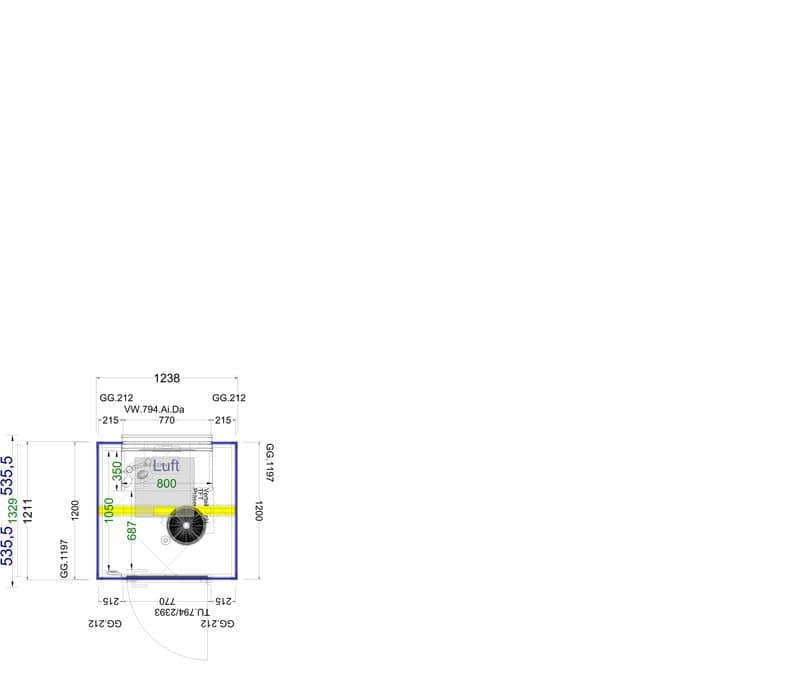

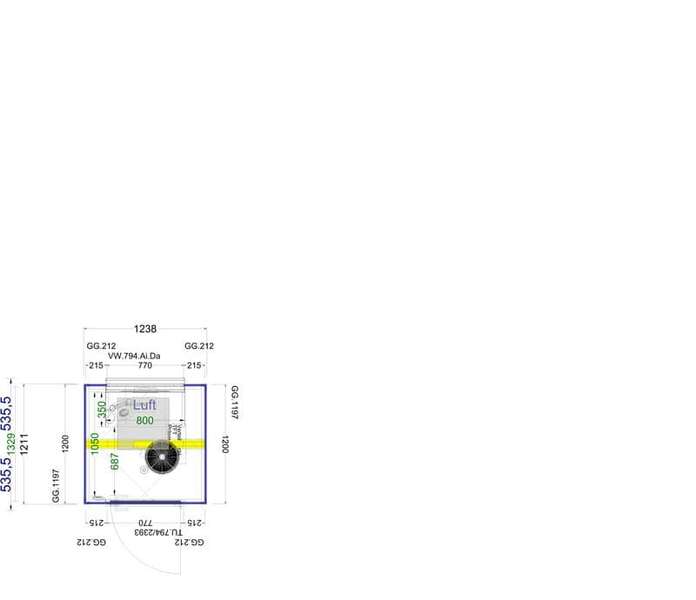

Think Tank floor plan 1 person telephone booth


Think Tank with door
one person standing / sitting
Door opens to the outside
B: 1200 mm
T: 1200 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
1x support element
1x decor panel
1x Absorber bowl inside
6x all-glass element
1x hinged door element opening outwards
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x storage board with wall mounting
1x electrification unit

DWG-Download


3ds Download

Type 1.3: phone booth

Think Tank for 2 persons
2D planning telephone booth 2 persons


Think Tank with door
1-2 persons standing / sitting
Door opens inwards
B: 1600 mm
T: 2000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
1x support element
1x decor panel
1x Absorber bowl inside
8x all-glass element
1x hinged door element opening inwards
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x storage board with wall mounting
1x electrification unit

DWG-Download


3ds Download

2





Type 2.1: Loungemeeting

Think Tank with 2 armchairs

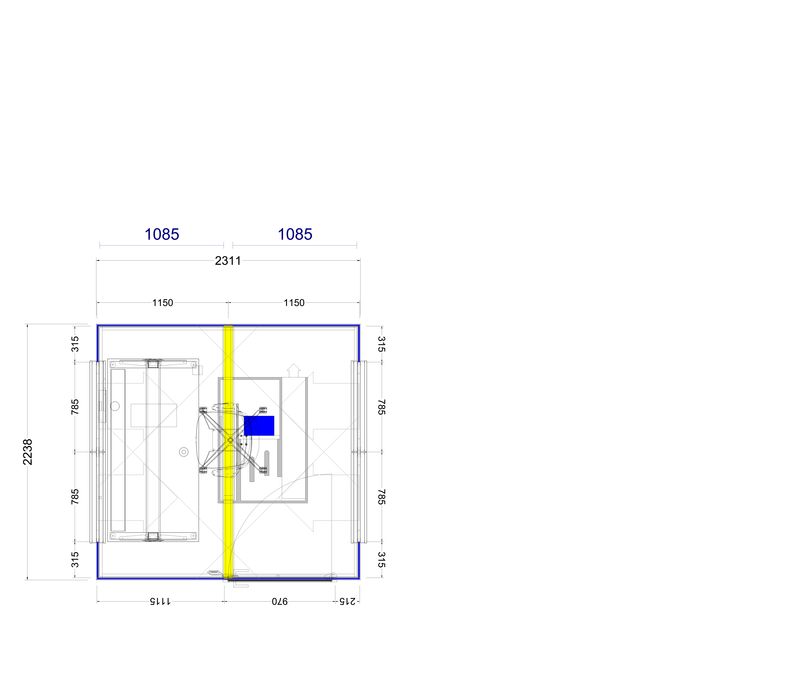

Think Tank 2 persons


Think Tank with door
two persons, sitting
Door opens to the outside
B: 2300 mm
T: 1300 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector
3x carrier element
4x decor panel
2x absorber shells
8x all-glass element
1x hinged door element opening outwards
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaire
1x presence detector in system ceiling
2x electrification unit
1x storage table Wall mounting

DWG-Download

3ds-Download

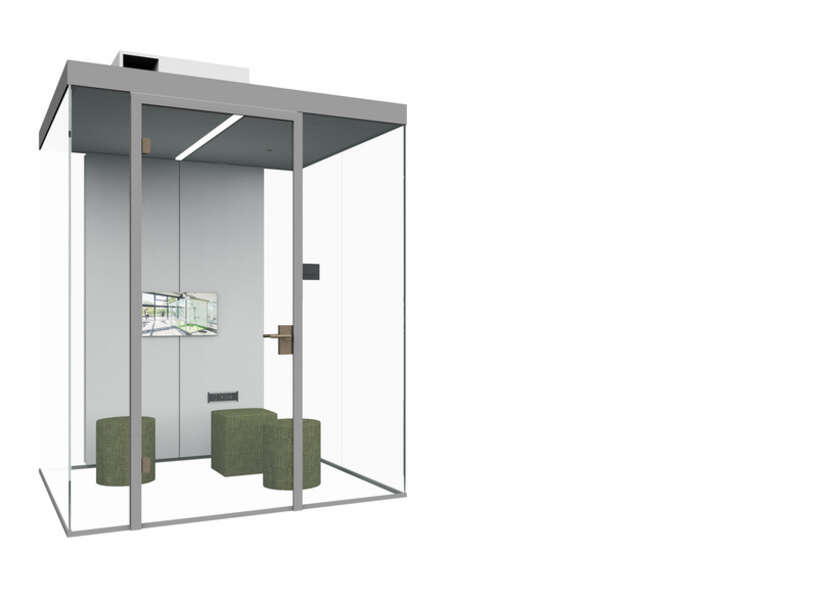

Type 2.2: Meeting room 3 persons

Think Tank as meeting room for two

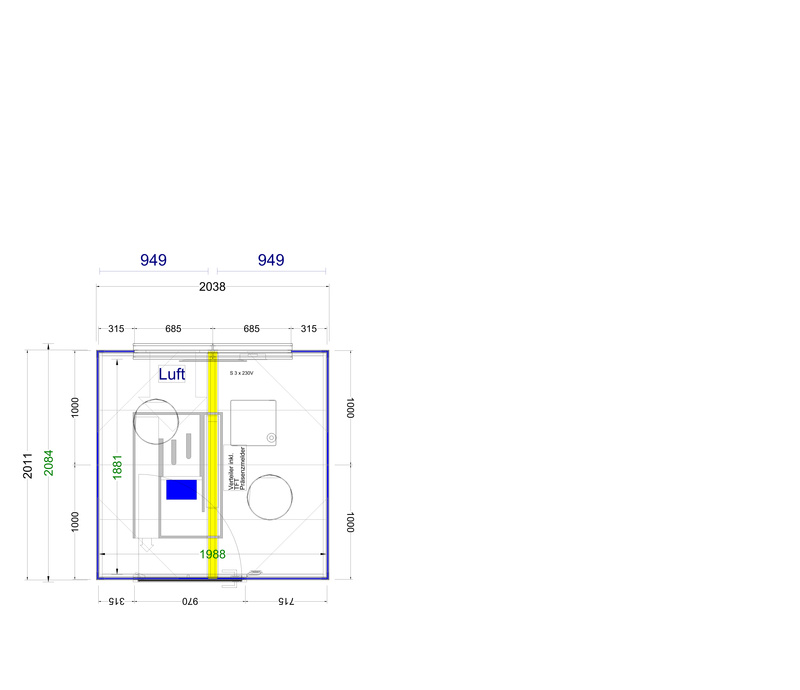

2D Plan Thin Tank 2 People Meeting


Think Tank with door
2-3 persons sitting
Door opens inwards
B: 2000 mm
T: 2000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
2x support element
2x decor panel
2x absorber shells
8x all-glass element
1x hinged door element opening inwards
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit



DWG-Download


3ds Download

Type 2.3: lounge meeting

Think Tank in lounge format for 4 persons


Think Tank with door
4 persons sitting
Door opens to the outside
B: 2500 mm
T: 1900 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
5x carrier element
8x decor panel
2x absorber shells
8x all-glass element
1x hinged door element opening outwards
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit



DWG-Download


3ds Download

3





Type 3.1: Meeting room

Think Tank for 3 persons

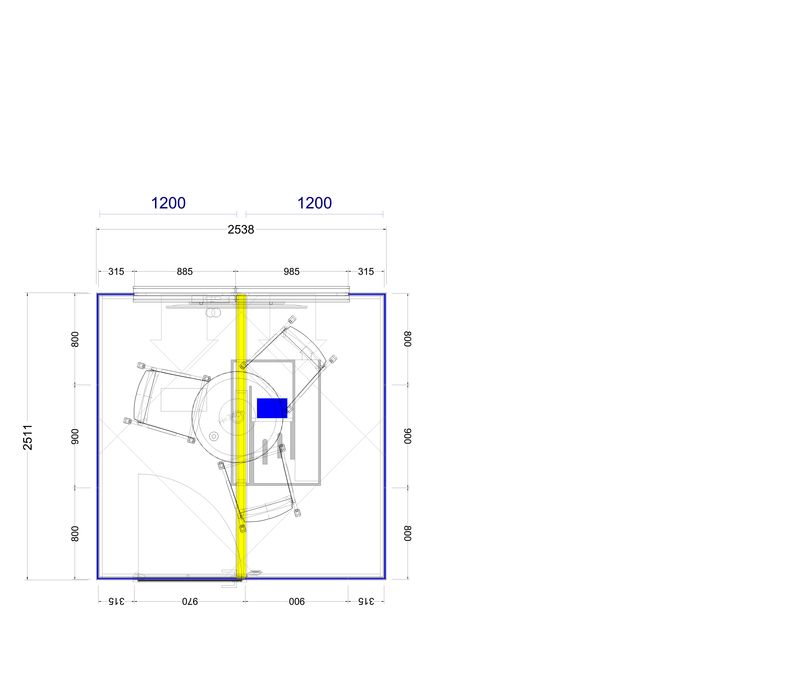

2D Plan Meeting for Three in Think Tank


Think Tank with door
3-4 persons sitting
Door opens inwards
B: 2500 mm
T: 2500 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
2x support element
4x decor panel
11x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

Type 3.2: Meeting room

Meeting room Think Tank for 4 persons
2D drawing 4 persons Think Tank


Think Tank with door
4 persons sitting
Door opens inwards
B: 2700 mm
T: 2700 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
2x support element
4x decor panel
11x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

Type 3.3: lounge meeting

Lounchmeeting in think tank with fours
2D drawing 4er Lounge Think Tank


Think Tank with door
4 persons sitting
Door opens inwards
B: 2700 mm
T: 2700 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
5x carrier element
10x decor panel
8x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

4





Type 4.1: Meeting room

Think Tank for 3 persons with rotunda
Think Tank for 3 persons with rotunda


Think Tank with door
2-3 persons sitting
Door opens inwards
B: 3000 mm
T: 2000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
3x carrier element
6x decor panel
7x all-glass element
1x glass rotunda r=800 mm
1x hinged door element opening inwards
1x diagonal bracing
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

Type 4.2: Meeting room

Think Tank 3 x 3 m for 4 persons
2D Plan Think Tank 9 m²


Think Tank with door
4 persons sitting
Door opens inwards
B: 3000 mm
T: 3000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
3x carrier element
6x decor panel
11x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

Type 4.3: Meeting room

Think Tank 4 persons with rotunda


Think Tank with door
4 persons sitting
Door opens inwards
B: 3000 mm
T: 3000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
3x carrier element
6x decor panel
9x all-glass element
1x glass rotunda r=800 mm
1x hinged door element opening inwards
1x diagonal bracing
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

5





Type 5.1: Meeting room

Think Tank for 4 persons Teamwork

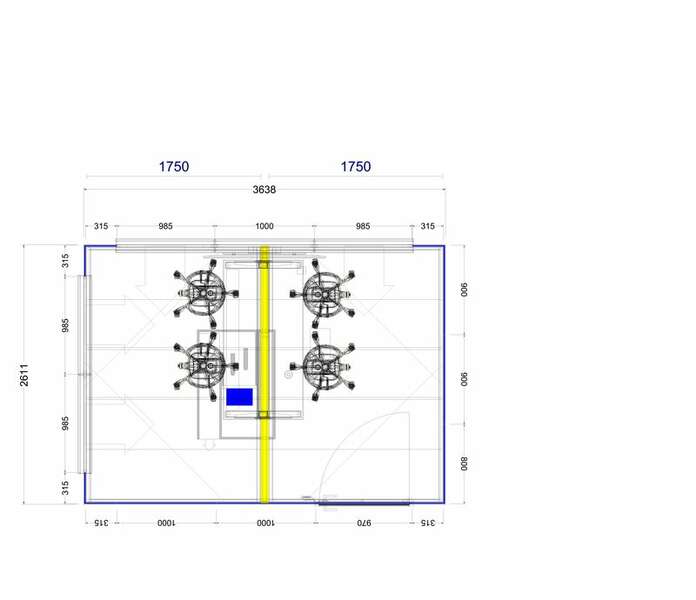

2d Plan Think Tank 9,4 m²


Think Tank with door
4 persons sitting
Door opens inwards
B: 3600 mm
T: 2600 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
3x carrier element
6x decor panel
10x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

Type 5.2: Meeting room

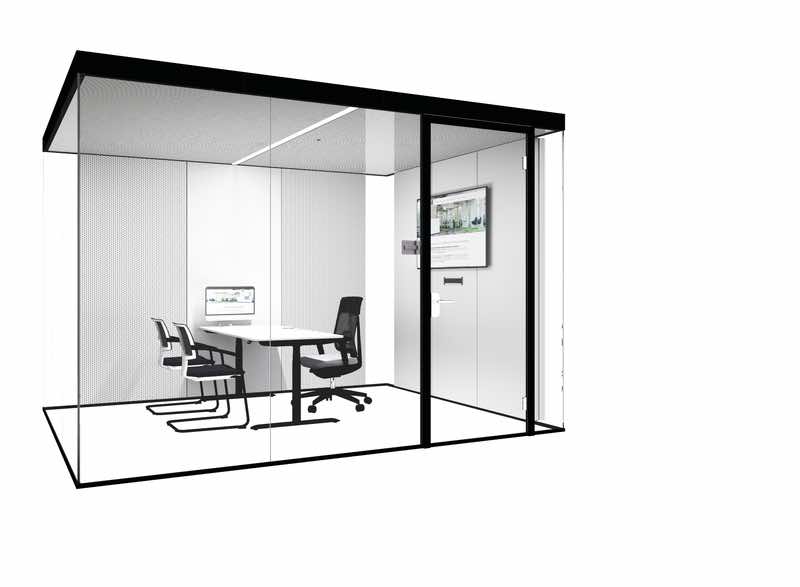

Think tank with rotunda 3,6 x 2,6
Think tank with rotunda 3,6 x 2,6


Think Tank with door
4 persons sitting
Door opens inwards
B: 3600 mm
T: 2600 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
3x carrier element
6x decor panel
10x all-glass element
1x glass rotunda r=800 mm
1x hinged door element opening inwards
1x diagonal bracing
2x ceiling element A-class absorber
1x Ventilation fan
1x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

Type 5.3: Meeting room

Think Tank 12 m² for 6 persons

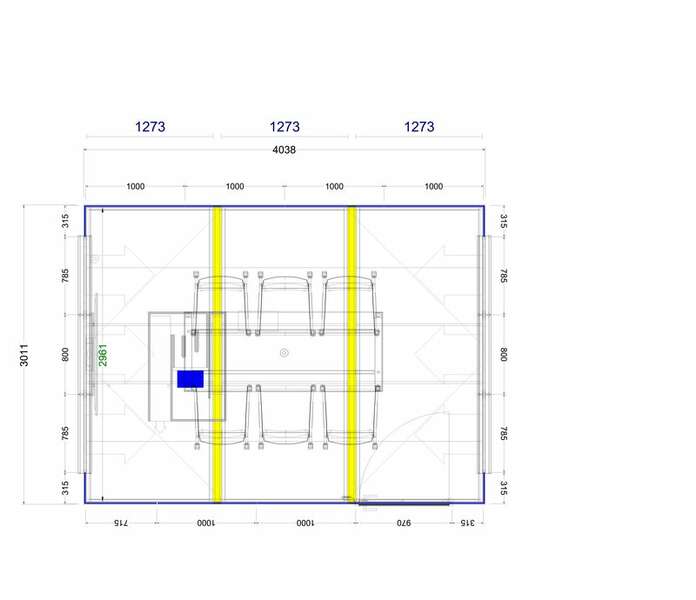

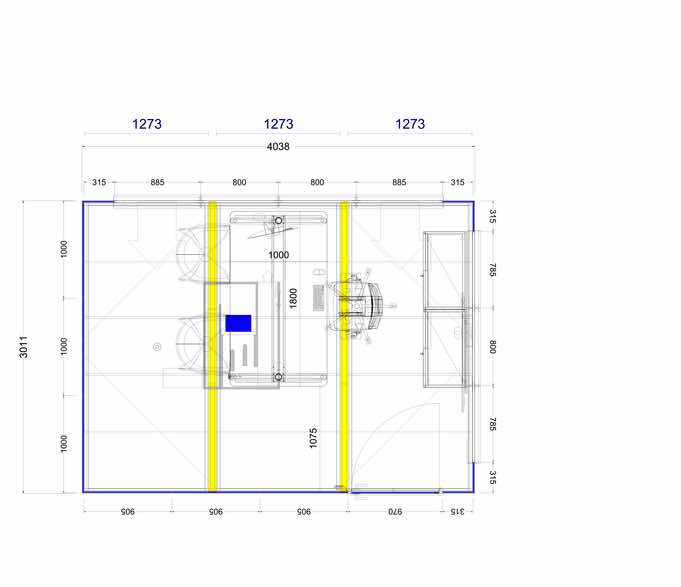

2D drawing 6 persons Thin Tank


Think Tank with door
5-6 persons sitting
Door opens inwards
B: 4000 mm
T: 3000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
6x carrier element
12x decor panels
12x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
3x ceiling element A-class absorber
2x ventilation fan
2x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

6





Type 6.1: Meeting room

Think Tank 3 x 5 m for 8 persons

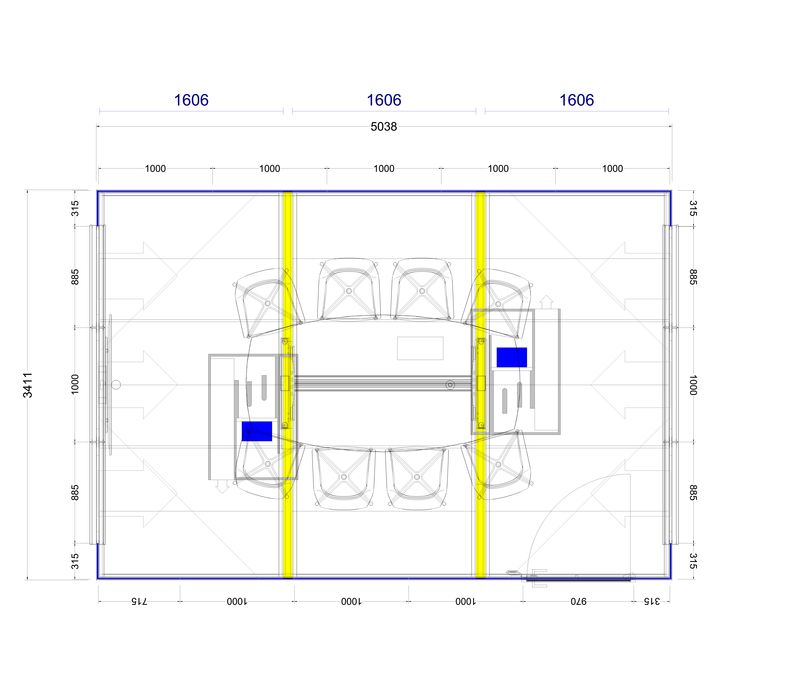

2D plan for 15 m² Thin Tank


Think Tank with door
7-8 persons sitting
Door opens inwards
B: 5000 mm
T: 3000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
6x carrier element
12x decor panels
13x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
3x ceiling element A-class absorber
2x ventilation fan
2x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

Typ 6.2: Meetingraum

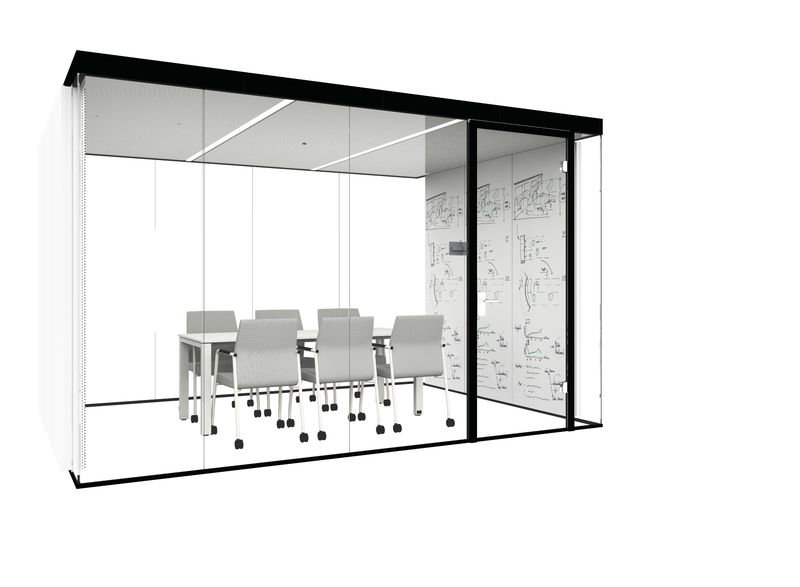

Think Tank 20 m² meeting for 8 persons

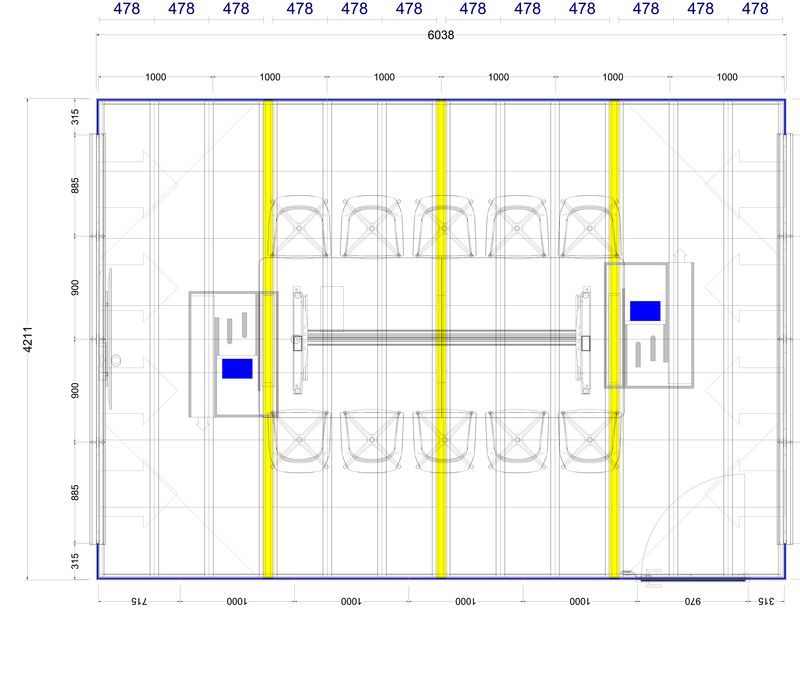

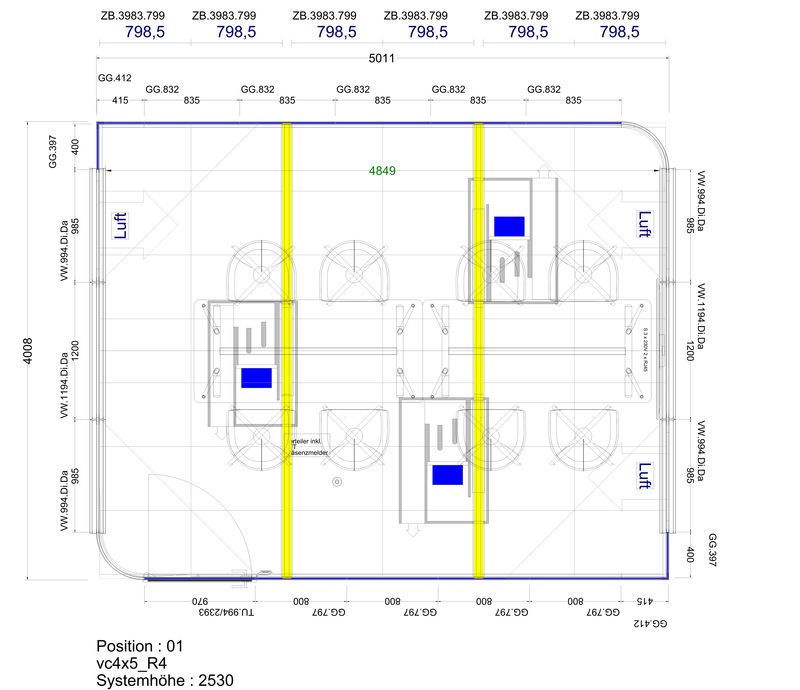

2D Plan Meeting in Think Tank for 8 persons


Think Tank with door
8-10 persons sitting
Door opens inwards
B: 5000 mm
T: 4000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
8x carrier element
16x decor panels
14x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
6x ceiling element A-class absorber
3x ventilation fan
2x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

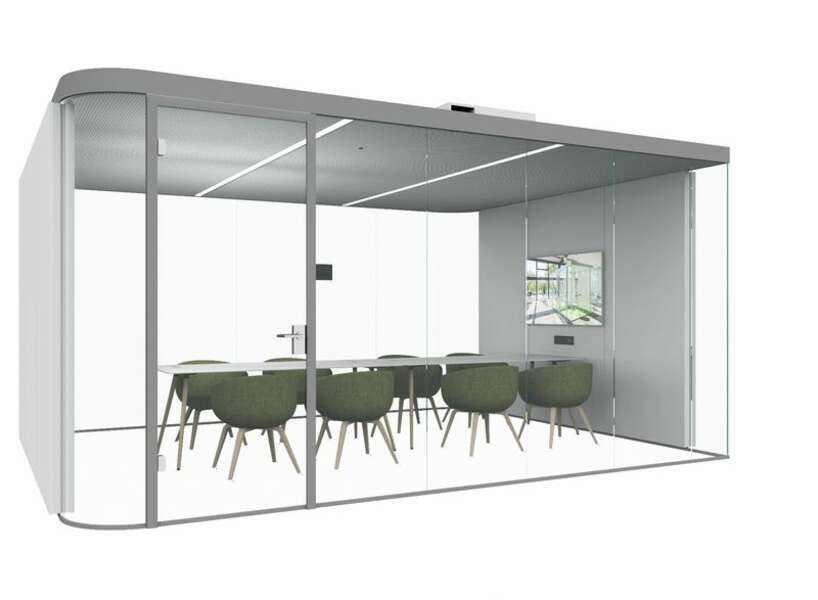

Type 6.3: Meeting room

Think Tank generous 8 persons
Think Tank with 2 rotundas

Think Tank with door
8-10 persons sitting
Door opens inwards
B: 5000 mm
T: 4000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
4x carrier element
8x decorative panels
12x all-glass element
2x glass rotunda r=800 mm
1x hinged door element opening inwards
1x diagonal bracing
6x ceiling element A-class absorber
3x ventilation fan
2x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

7





Type 7.1: Meeting room

Think Tank as conference room for 12
2D plan for 12th conference in think tank


Think Tank with door
10-12 persons sitting
Door opens inwards
B: 6000 mm
T: 4000 mm
Height: UK ceiling 2400 mm
Height: OK Ceiling 2530 mm
Height: OK air vent 2730 mm

4x corner connector 90
8x carrier element
16x decor panels
16x all-glass element
1x hinged door element opening inwards
1x diagonal bracing
8x ceiling element A-class absorber
3x ventilation fan
3x Gera linear luminaires
1x presence detector in system ceiling
1x electrification unit

DWG-Download


3ds Download

The think tank can be positioned in the immediate vicinity of the workplace

This independence from structural constraints allows Think Tank vetroCUBE to be optimally positioned close to the workstations. This is the only way to achieve good acceptance and ad-hoc use. The room in room system thus contributes to the optimisation of the communication of your teams. Conversations no longer take place somewhere, disturbing in the greater area. Without the time-consuming booking of usually much too large conference rooms, employees in the vetroCUBE think tank can exchange information quickly and efficiently without disturbing colleagues.

space efficiency

The think tank uses the middle zone in the office. The facade remains free for workplaces: The architecture of the office can thus be optimally used.

room acoustics

vetroCUBE offers soundproof retreat rooms in open space. Employees find retreat rooms for working in groups.

Plug and Play

vetroCUBE is supplied with ready to use 230 V electrification. The "plug and play" principle applies so that commissioning is simple.

ventilation

The system ventilation of the Think Tank vetroCUBE ensures the supply of fresh air. An acoustically optimised fan box is located on the ceiling.

cooling

The vetroCUBE system offers the option of room cooling. Long use and dense occupancy can lead to heating of the cube.

light

The Think Tank vetroCUBE offers a flexible LED lighting concept. It can be adapted to different uses and different sizes.

construction

The room in room system vetroCUBE is a modular system. The cubes can be individually adapted to sizes and design requirements.

fire protection

The room in room system can easily be equipped with the necessary fire protection technology, smoke detectors, sprinklers and / or loudspeakers.

work settings

The room-in-room system can be designed specifically for work settings in terms of size, equipment and decoration.

Solutions

The think tank can be optimized for many applications. Here are a few examples. Tell us your wishes. We build your vetroCUBE.
