Glass wall as frameless construction

Glass wall details, construction, variants, design

The soloVETRO glass wall consists of frameless glass surfaces and, on request, of full wall surfaces or acoustically activated surfaces.

The glass elements are frameless. The panes are specially machined at the sides and glued dry and stable with a transparent seal. Silicone is NOT used. The only glass wall is only guided on the floor and under the ceiling in slim aluminium profiles. All profiles are silver coloured, EV1 anodised. The functional and discreet design of the soloVETRO glass wall underlines the design of modern office zones. The transparency promotes team awareness. The transparent partition walls create a light and light-flooded atmosphere. The conscious strengthening of visual relationships supports your employees in their daily work.

Facts frameless glass wall

timeless design
restrained design
filigree profiles
frameless glass surfaces
Glass / Glass Corners
with ceiling connection
safety glasses
decorative surfaces
acoustic surfaces

Glass wall as only glass construction — Timeless and transparent, the frameless glass wall blends inconspicuously with any architecture.

Glass wall soloVETRO single glazed:

An aluminium profile (30/30 mm) is mounted on the floor. This profile contains the glass wall, the 12 mm VSG pane in the middle and telescoped in the slightly higher ceiling profile (30/50 mm). The soloVETRO glass wall is available in two versions. The single glazed wall is suitable for medium sound insulation and is particularly economical. This construction achieves up to approx. 37 dB with a 12 mm LSG glazing. The single glazed and the double glazed office glass wall have the same height profiles so that they can be combined at any time.

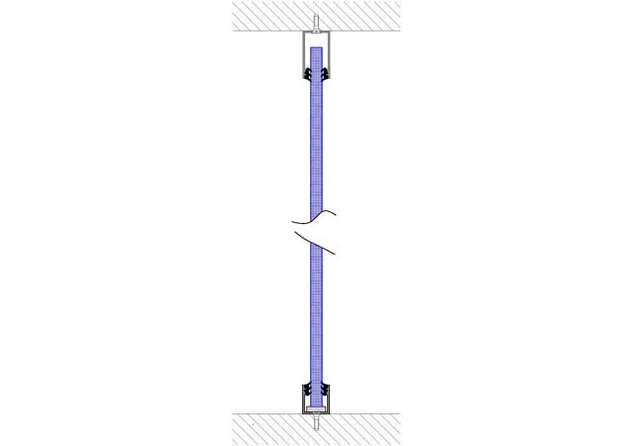

Glass wall Construction 12 mm VSG — Single glazed glass wall

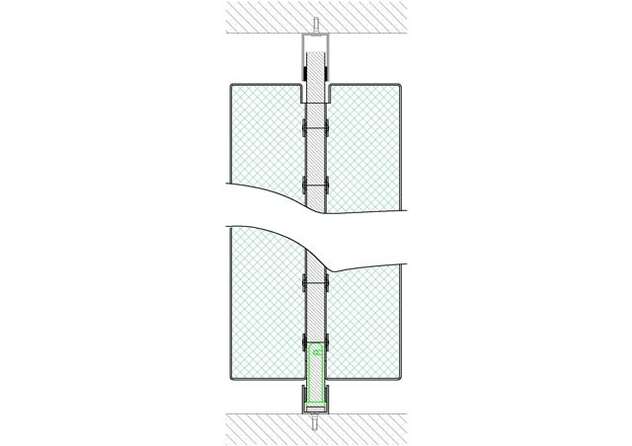

Glass wall construction Acoustic Element — Double absorber single glass

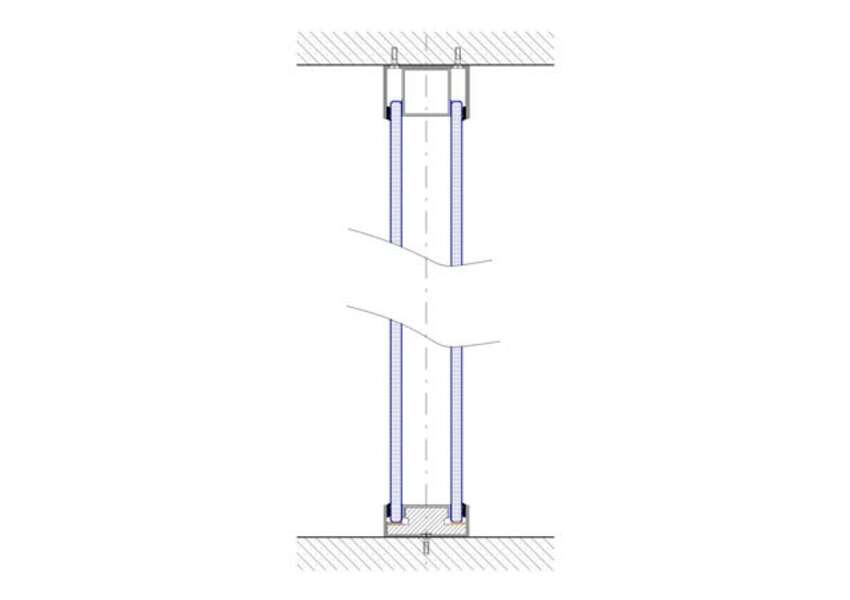

Glass wall double glazed construction — double glazing

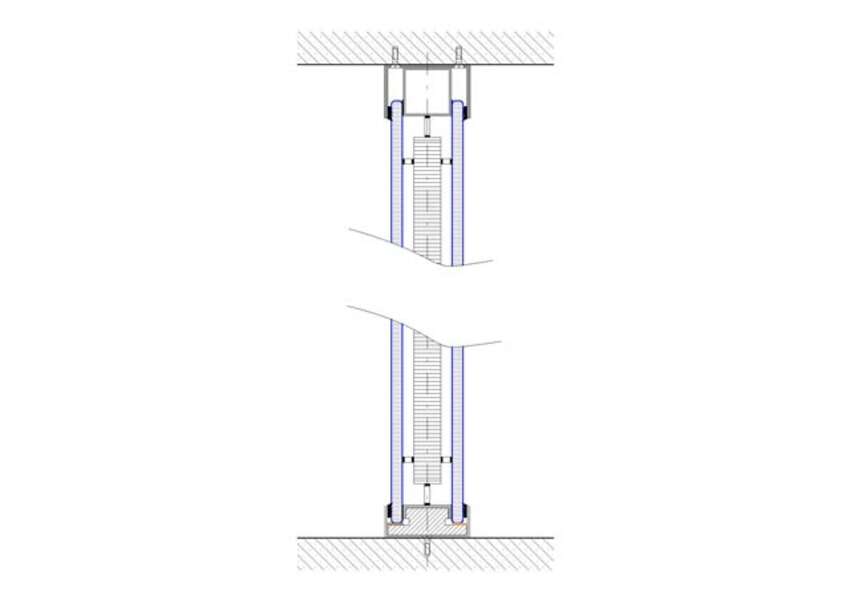

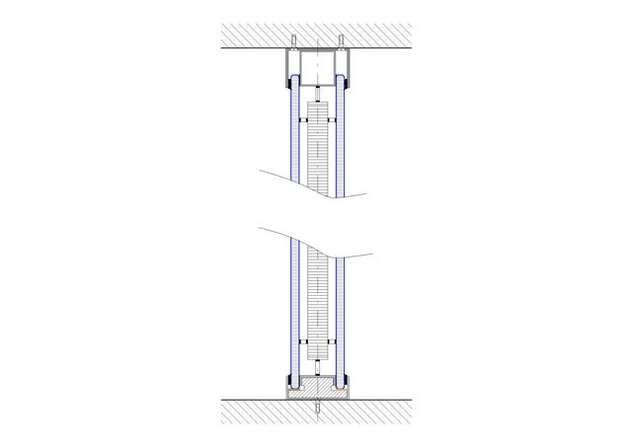

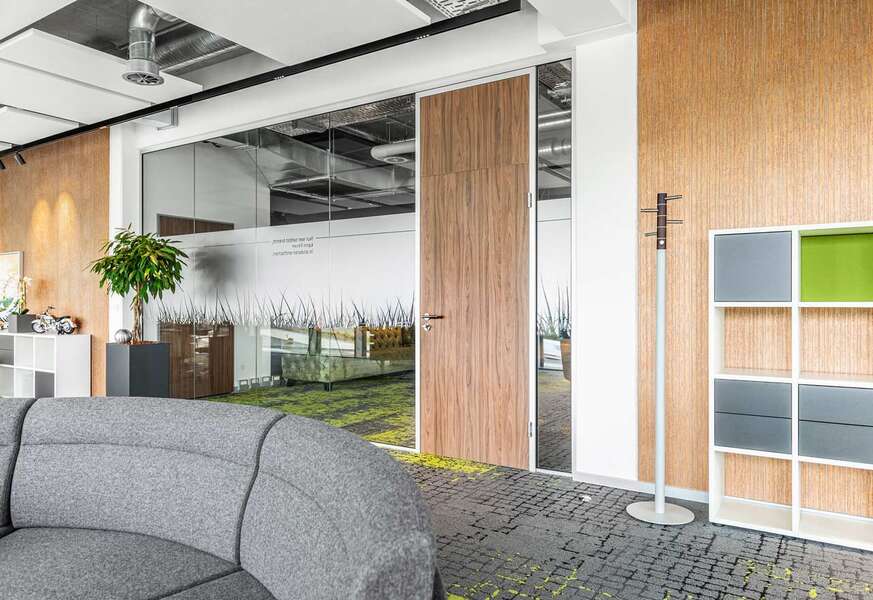

Glass wall double glazed Decorative element — Double glazing Decorative element

Glass wall soloVETRO double glazed:

Here too, an aluminium profile (30/80 mm) is screwed to the floor. The two glass panes are adjusted flush with the edges. The glass wall is telescoped in the slightly higher ceiling profile (50/80 mm). Both profiles are extremely slim and unobtrusive. The double-glazed wall is equipped with 2 x 10 mm ESG panes for sound insulation of approx. 42 dB. This means that this wall is always used where high sound insulation and maximum transparency are required.

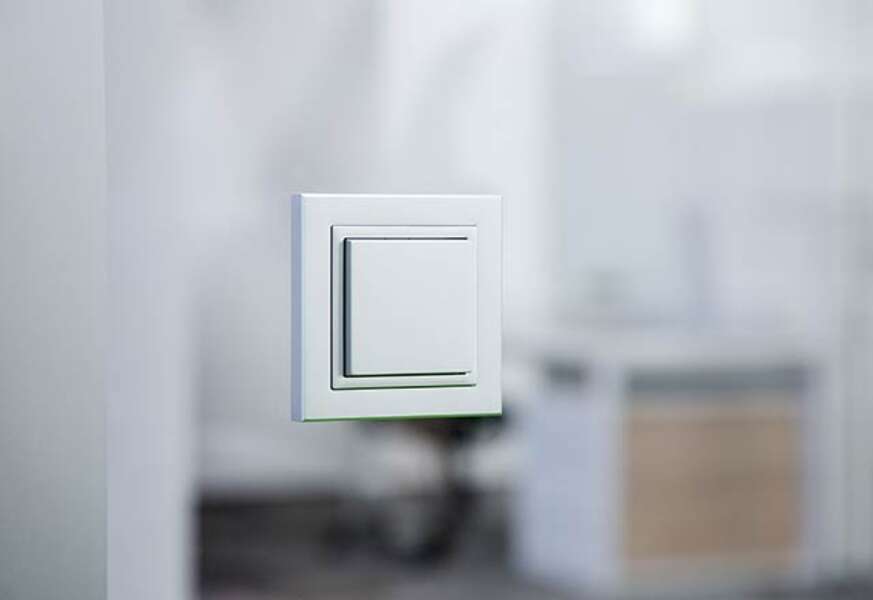

Glass wall Light switch — Wireless pushbutton on glass wall

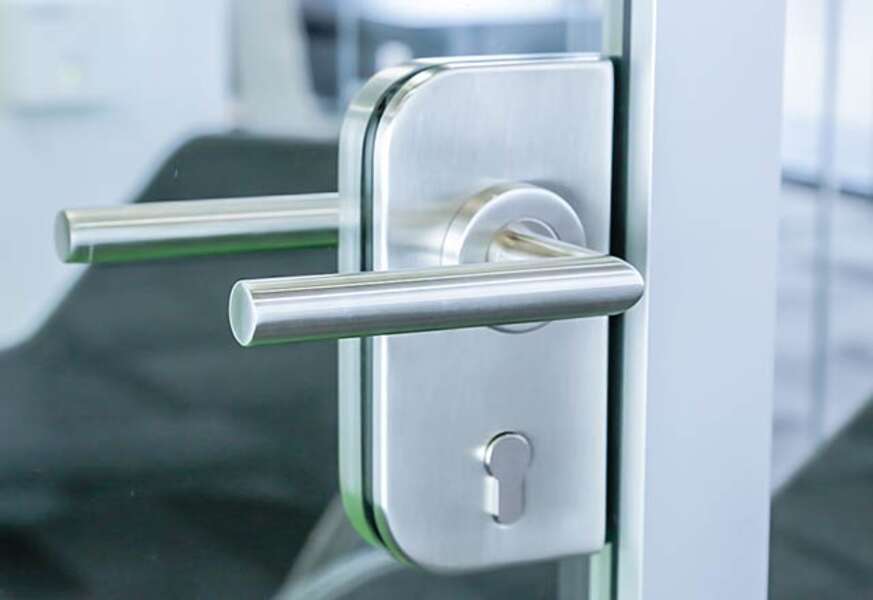

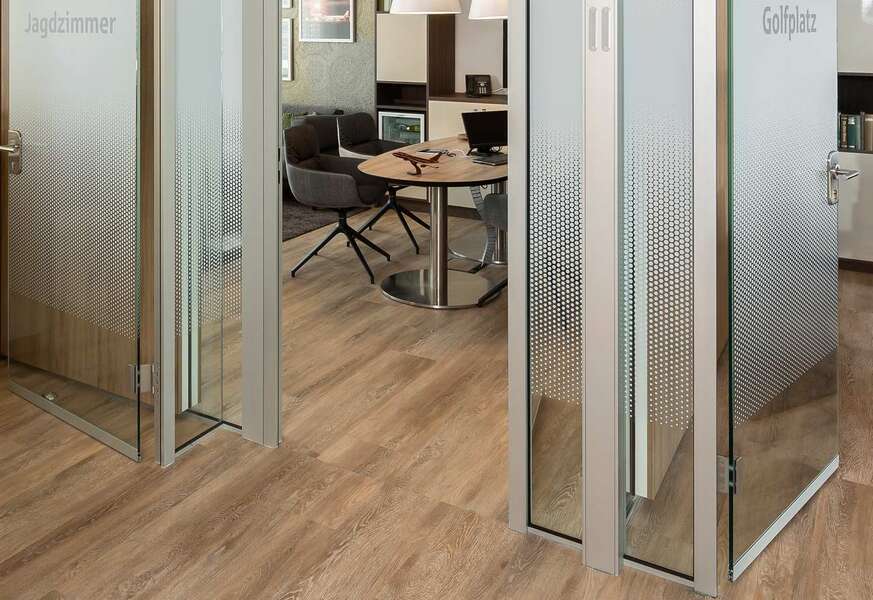

Glass wall Door handle All glass door — Door set glass door

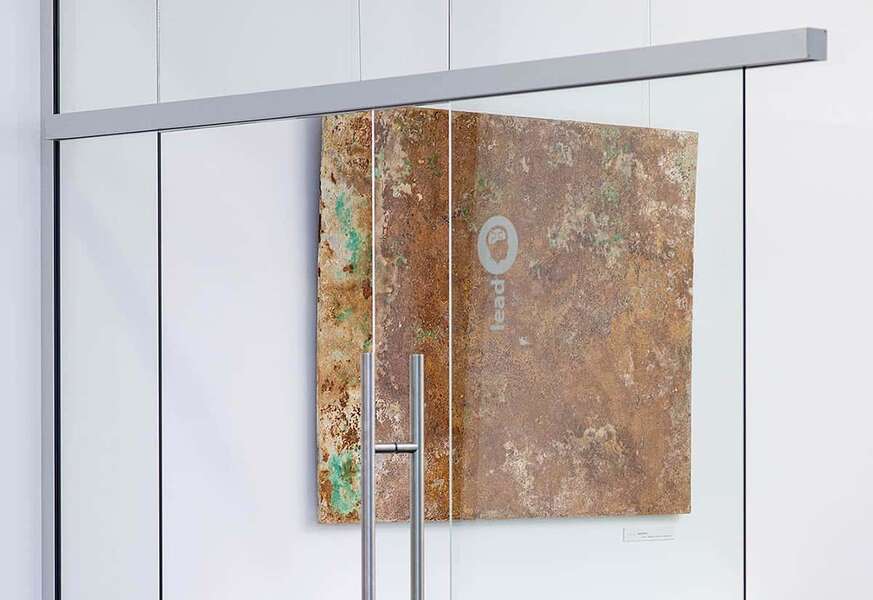

Glass wall Glass decoration — Sliding door glass wall only

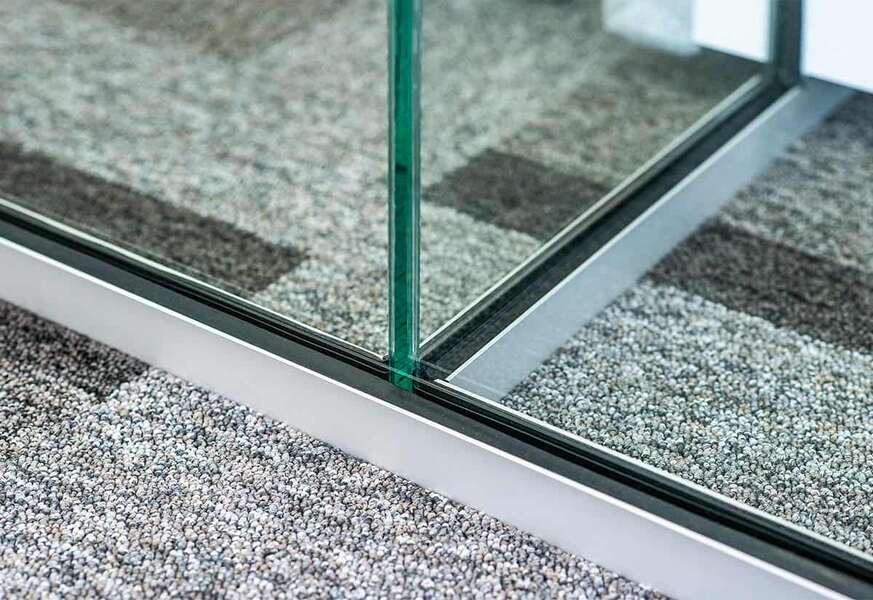

Frameless glass wall Floor connection — Floor connection glass wall, single pane

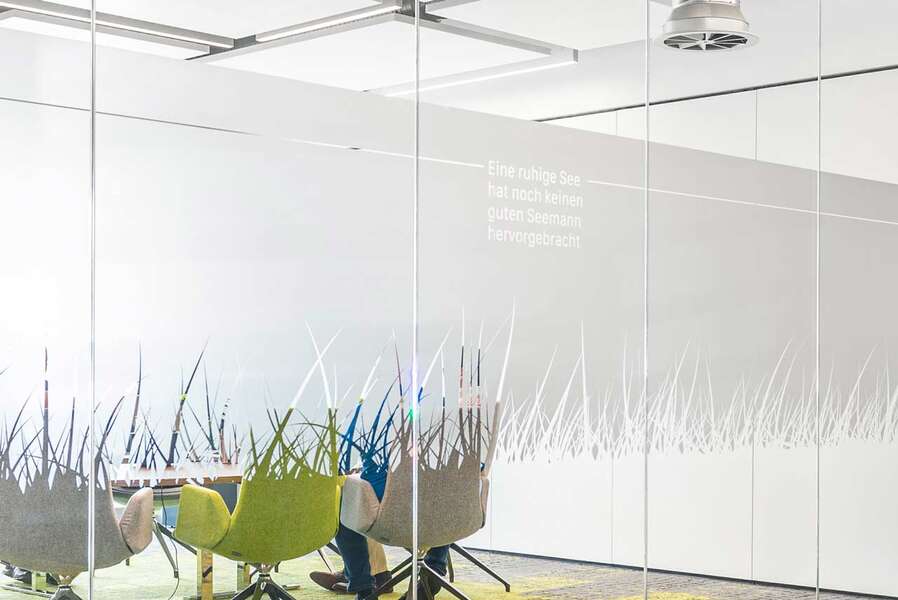

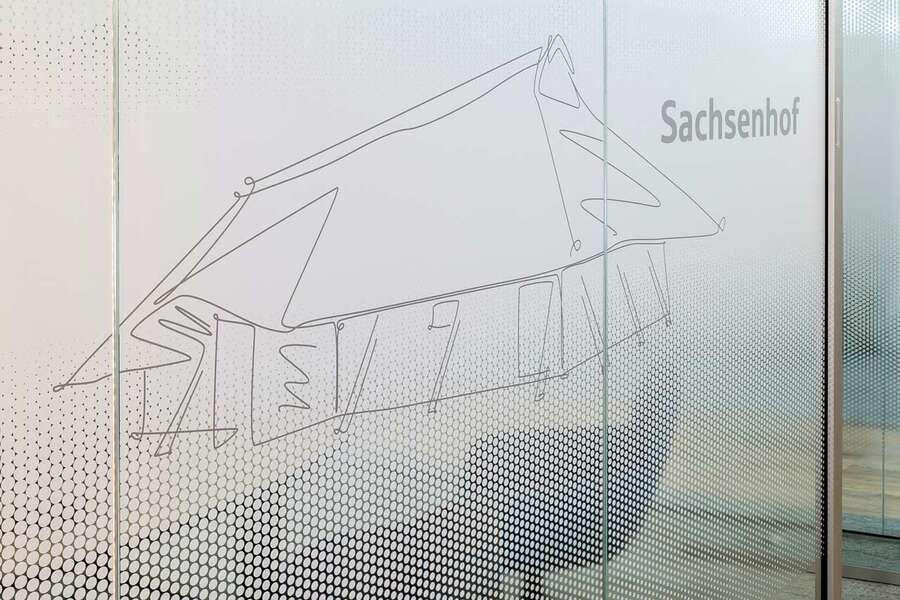

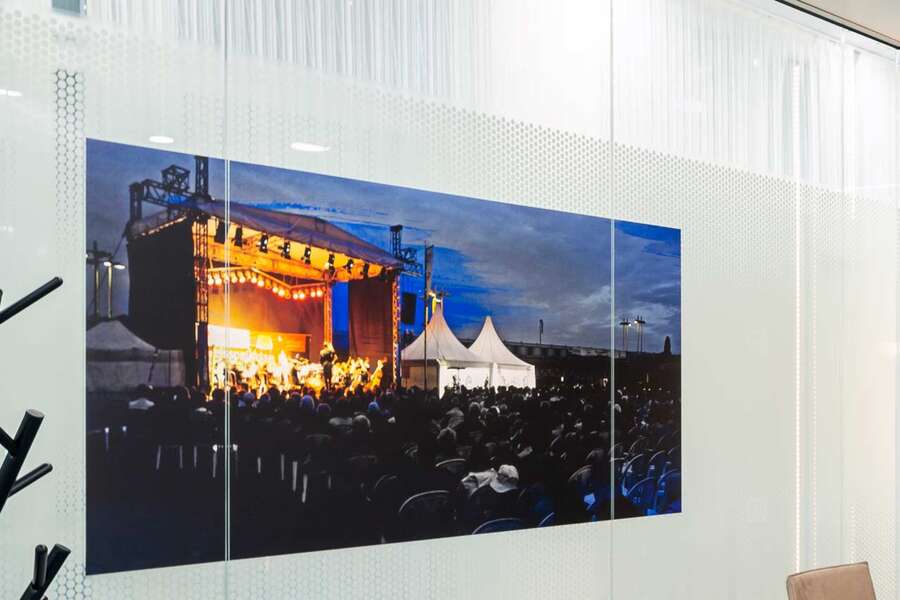

Glass wall privacy screen and decor

The transparency of the glass wall can be limited with individually designed decorative foils. The space between the double-glazed wall can be used, e.g. for decorative decorative bulkheads, but also for blinds.

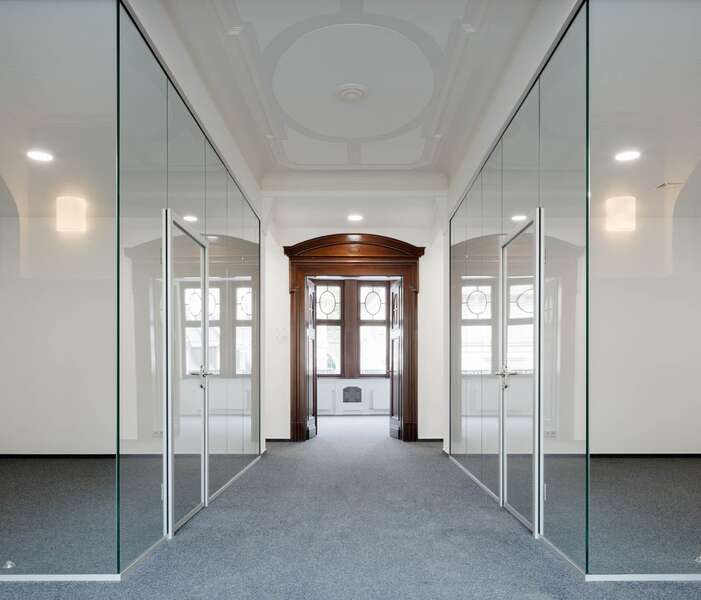

space efficiency

Highly transparent all-glass walls contribute to the optimised use of office space. Rooms appear larger. Central zones can be exposed and better used.

room acoustics

The soloVETRO glass wall provides good sound insulation. On request, we integrate high-performance absorbers to reduce the reverberation time.

construction

The all-glass wall is composed of frameless glass elements. The butt joints are dry glued. Corners are glass to glass joints.
