silentWORK Schallschirm auf der Bürofläche

silentWORK - modular acoustic screen

silentWORK - retreat niches in open space

Why? Because only a healthy relationship between concentration and communication leads to good results!

Time and again, we come back to Ethan Bernstein's insights. Your employees perform optimally in a work environment that allows a healthy mix of communication and concentration. The best results are achieved when the colleagues find enough time to reflect and work out thoughts and results in a concentrated manner in addition to the collaboration, i.e. in addition to communicative phases.

Designing the spatial environment for this mix!

The planner is required to provide spatial diversity to support agile working, possibly also desk sharing. When we at woodtec talk about spatial diversity, we are not just talking about color, materials and shapes. Rather, we are talking about the acoustically suitable environment for the employee's respective activity.

silentWORK - your own acoustic environment, but as a team!

With our room-in-room system vetroCUBE, we have been supplying soundproof and ventilated rooms in the direct vicinity of the workplace for years, which can be used ad hoc as optimal places of retreat, especially for teamwork and meetings. Often, however, this soundproof cabin seems "acoustically oversized" to simply give employees a better place to talk on the phone or for concentrative work.



Consequently, we are now completing the range with another self-sufficient, modular and, above all, acoustically highly effective room system.

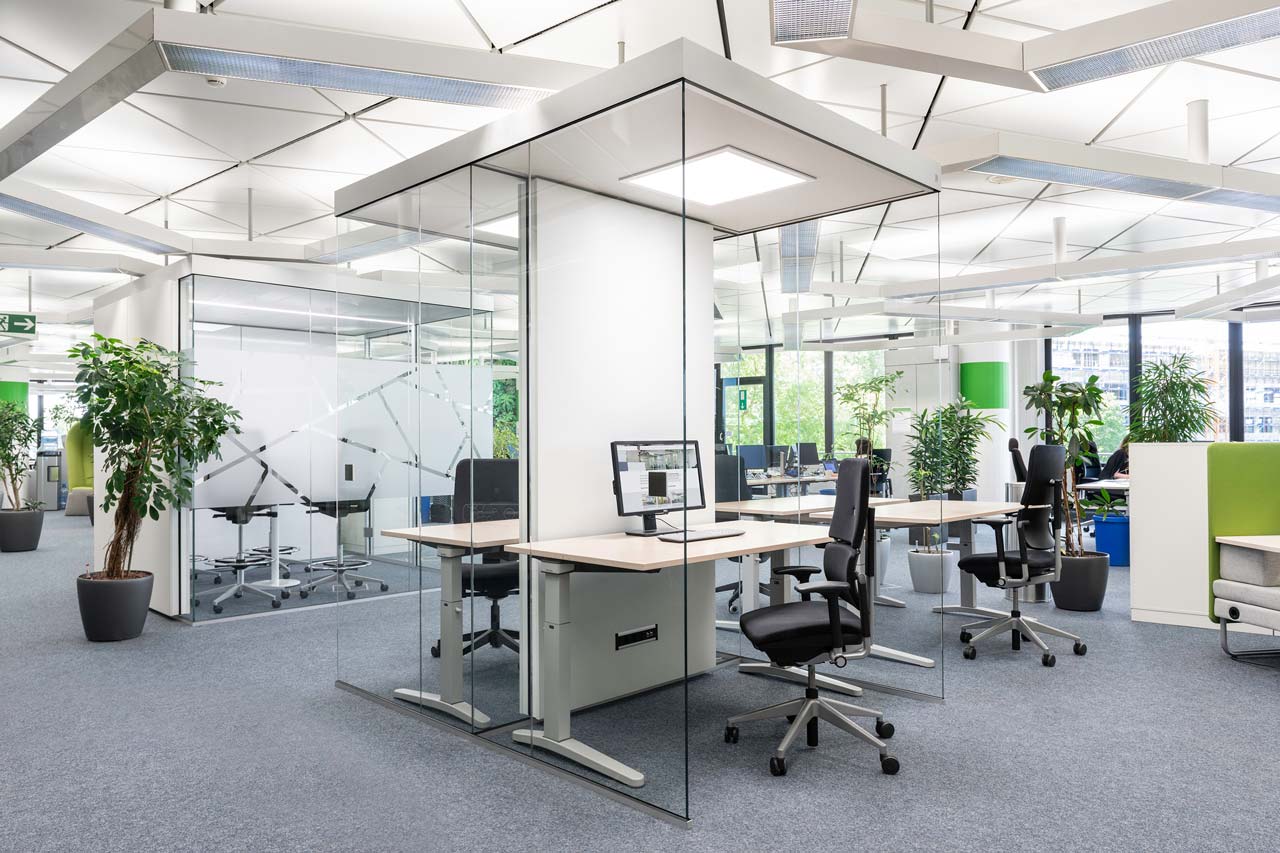

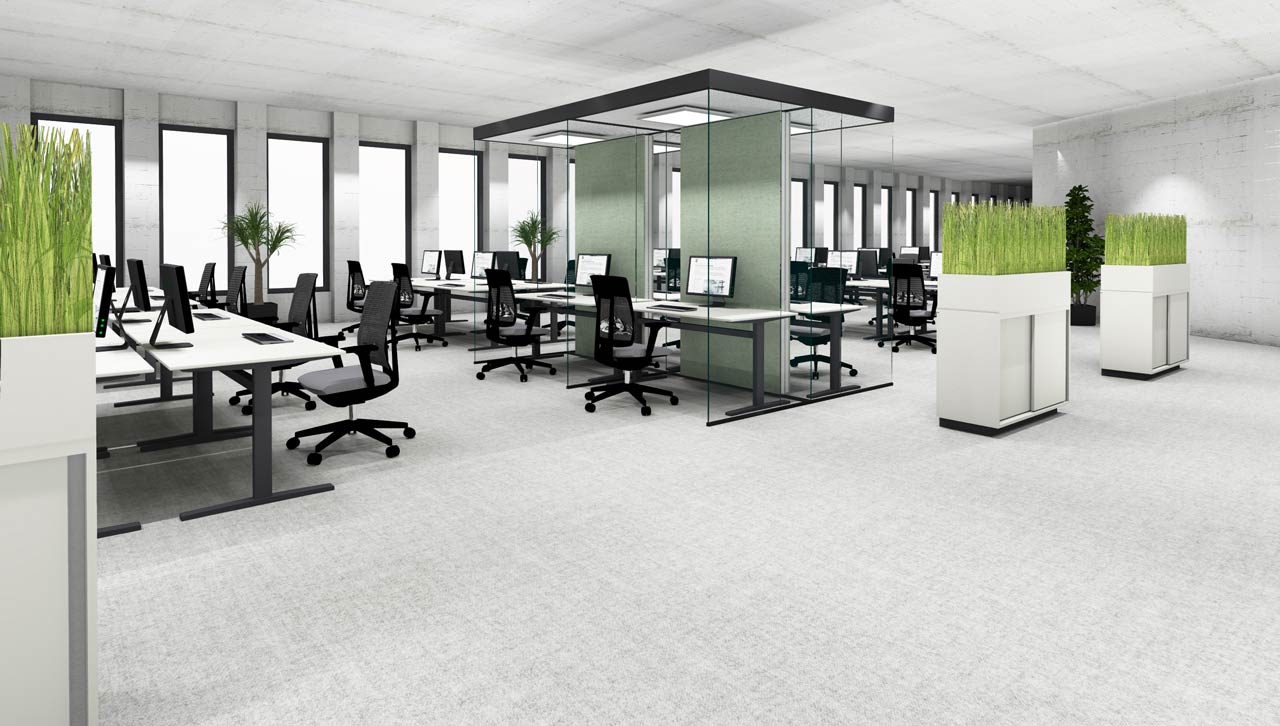

silentWORK is a free-standing acoustic screen that provides employees with their own acoustic environment, reliably shielding them acoustically from colleagues while still leaving them in the team. In the middle of it all, in the open multispace, in the workzone, within sight of colleagues, the employee finds acoustically particularly well shielded workplaces with silentWORK. The colleague remains in the team and can nevertheless develop completely freely. Long conversations, e.g. in a foreign language or also particularly concentrative jobs succeed effortlessly. Surrounding workplaces are not disturbed and do not interfere. silentWORK enriches your open space with "single office-like qualities". silentWORK offers spatial diversity, especially in terms of acoustics, and supports your hybrid office and thus the return of your colleagues to the office space.

  • ANY configuration available
  • Simultaneous phone calls possible without any problems
  • Freestanding and self-supporting
  • Statics tested
  • Modular and flexible
  • Illumination suitable for screen
  • Electrification with standard interface
  • Self-sufficient and independent from the building
  • Transparent without frames and supports
  • Acoustics adjustable according to requirements
  • Full wall function: absorber, decor, whiteboard
  • Solid wall instead of glass corners as option
  • Profiles anodized or RAL
  • Surfaces RAL, decor or fabric
  • Glasses clear, foiled or printed
  • Sustainable manufacturing in Germany

Schallschirm silentWORK - Sie sind mitten drin und doch für sich!

silentWORK ist ein frei stehender Akustikschirm der Mitarbeitern ihre eigene akustische Umgebung bietet, sie akustisch verlässlich von den Kollegen abschirmt und dennoch im Team belässt. Mitten drin, im offenen multispace, in der workzone, in Sichtweite zu den Kollegen findet der Mitarbeiter hinter dem Schallschirm silentWORK einen akustisch besonders gut abgeschirmten Arbeitsplatz. Der Kollege bleibt im Team und kann sich dennoch völlig frei entfalten. Lange Gespräche, Telefonberatungen oder virtuelle Meetings, auch in einer Fremdsprache, gelingen mühelos. Umliegende Arbeitsplätze werden nicht gestört und stören nicht. Der Akustikschirm silentWORK bereichert Ihr open space um "Einzelbüro ähnliche Qualitäten". silentWORK bieten Räumliche Vielfalt, insbesondere in akustischer Hinsicht und unterstützt Ihr hybrides Büro und damit die Rückkehr Ihrer Kollegen auf die Büroflächen.

Key Facts Akustikschirm silentWORK

Acoustic screen self-sufficient and ready to function

silentWORK is a self-sufficient, self-supporting room solution. The acoustic system stands freely, without connection to the ceiling or the facade of the building. The stability is ensured. The equipment makes the system independent of the infrastructure of the building in which it stands. It is equipped with its own integrated lighting and can be fitted with customized electrification components on request.

silentWORK modular, flexible , free-standing and self-supporting!

The room solution stands freely on the surface. The acoustic system can be implemented quickly and easily. It is modular and can be expanded as needed at any time. Each component is reusable. silentWORK does not need any connection to the wall, the facade or the ceiling. Thus, acoustic system is like a room-in-room solution, freely positionable in the building.

Acoustic

The silentWORK acoustic system optimizes two essential components of acoustics. Highly sound-absorbing assemblies ensure the reduction of the reverberation time, so that the system reduces the volume in the open space. At the same time, the 5-sided sound-insulating and sound-absorbing enclosure of the workstation ensures that only a small part of the emitted sound penetrates to the outside. The direct propagation of sound is significantly reduced, and this is precisely what ensures that the employee can find peace and quiet in this room solution or can make phone calls freely without disturbing others. The system even makes simultaneous telephone calls possible at opposite workstations.

About the assemblies: the ceiling element is an A-class absorber and bears the brunt of the absorption with a sound absorption coefficient of αw = 0.95. It is supported by the, in speech direction mounted, wall absorbers with an absorption coefficient of αw = 0.6 (also αw =0.9 possible). Thus, only a small part of the sound is thrown back into the room. At the same time, virtually no sound penetrates to the opposite side. The complementary, frameless glass surfaces ensure direct visual contact with colleagues and thus keep employees in the team.

Illumination

silentWORK encloses the workplace on 5 sides. An important component for the good acoustic properties is the highly sound-absorbing ceiling element. This is also where the screen-compatible lighting is found. The large-format LED panel illuminates the workplace perfectly. The user switches the lighting element via a wireless radio button.

Design

Frameless glazing and glass-to-glass corner connections guarantee a delicate and understated appearance. The transparent appearance of the Denker cell ensures that your room structure does not lose its visual balance. Visual relationships are deliberately enhanced. Is the reduction of transparency nevertheless desired? A selection of glass decorations is available.

silentWORK Examples for configurations

In principle, we can supply any configuration imaginable. We go to the size of your existing furniture, so that no new investments are necessary here. We deliver the retreat niches as solitary construction or also as configuration for 2, 4 or more workstations. silentWORKs can be operated with rigid tables as well as with electromotive adjustable work tables. We deliver the profiles silver anodized and the surfaces white, if you want to stay with the standard. On request, we supply the profiles in RAL and the surfaces e.g. fabric covered.

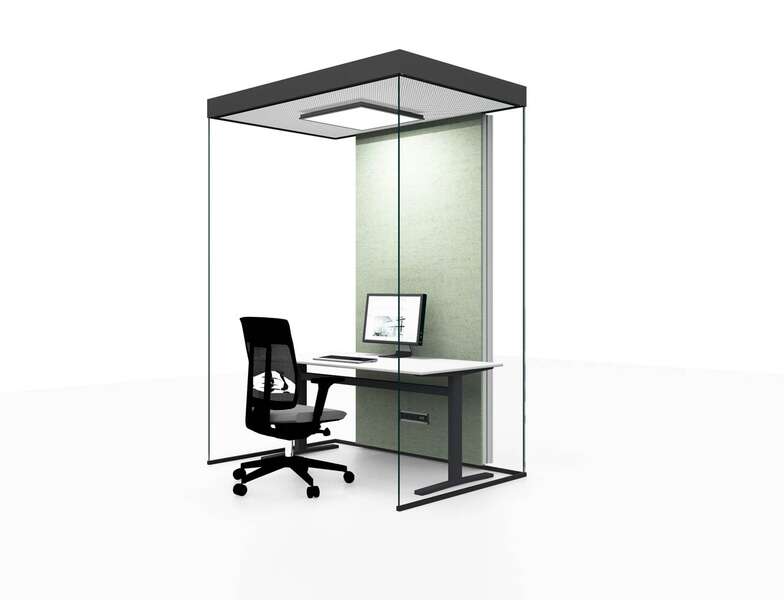

sW one

Acoustic screen for an AP. Table size here 1600 x 1800 mm. Other sizes available. Side walls glazed, on request also as absorber.

  • 4x glass element
  • 1x solid wall absorber / decor
  • 1x ceiling high performance absorber
  • 1x LED panel switchable, dimmable
  • 1x ELT each 3x Schuko, 2x RJ45

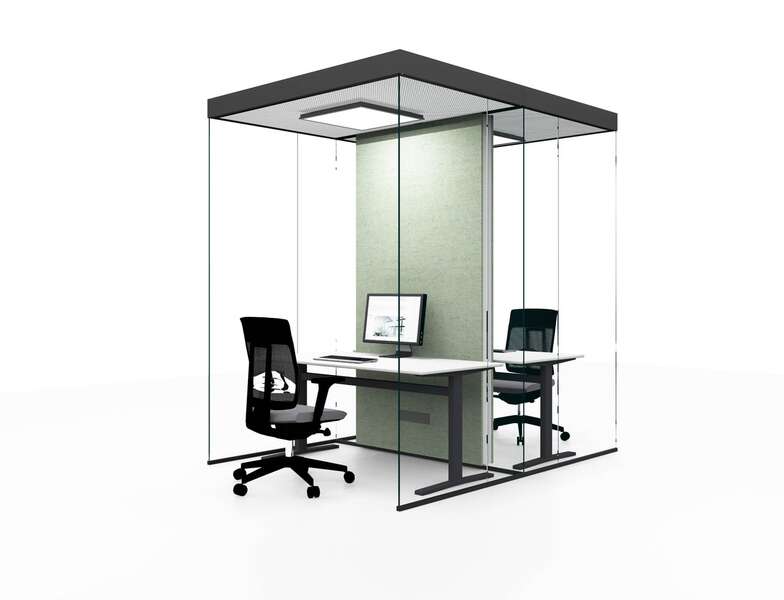

sW face to face (2 AP)

Acoustic screen for two AP. Table size here 1600 x 1800 mm. Other sizes available. Side walls glazed, on request also as absorber.

  • 8x glass element
  • 1x solid wall absorber / absorber
  • 2x ceiling high performance absorber
  • 2x LED panel switchable, dimmable
  • 2x ELT each 3x Schuko, 2x RJ45

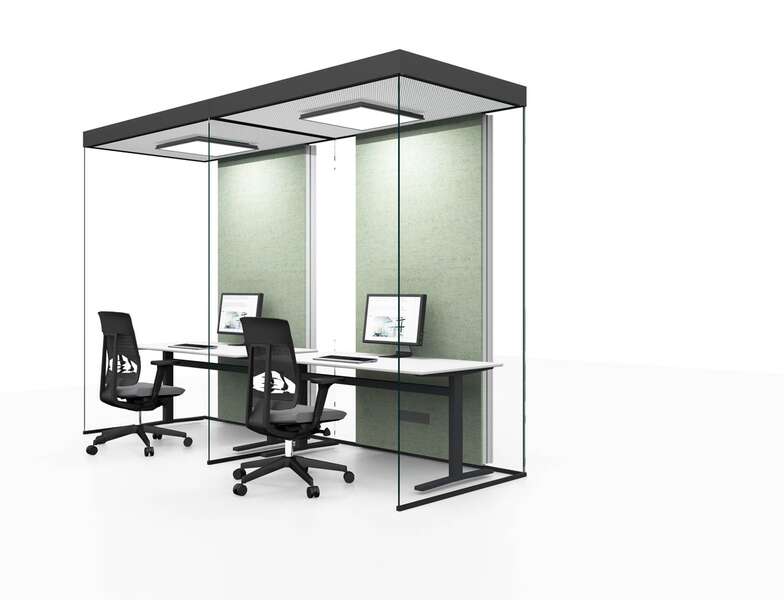

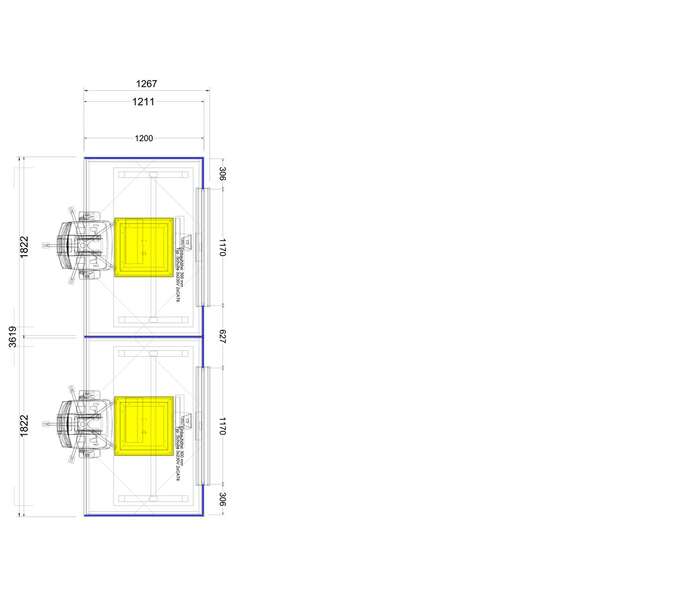

sW side by side

Acoustic screen for two AP. Table size here 1600 x 1800 mm. Other sizes available. Side walls glazed, on request also as absorber.

  • 6x glass element
  • 2x solid wall absorber / decor
  • 2x ceiling high performance absorber
  • 2x LED panel switchable, dimmable
  • 2x ELT each 3x Schuko, 2x RJ45

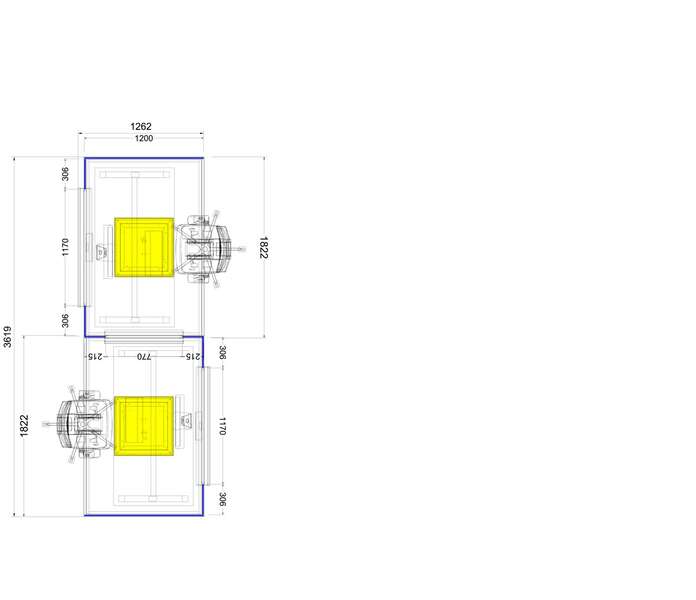

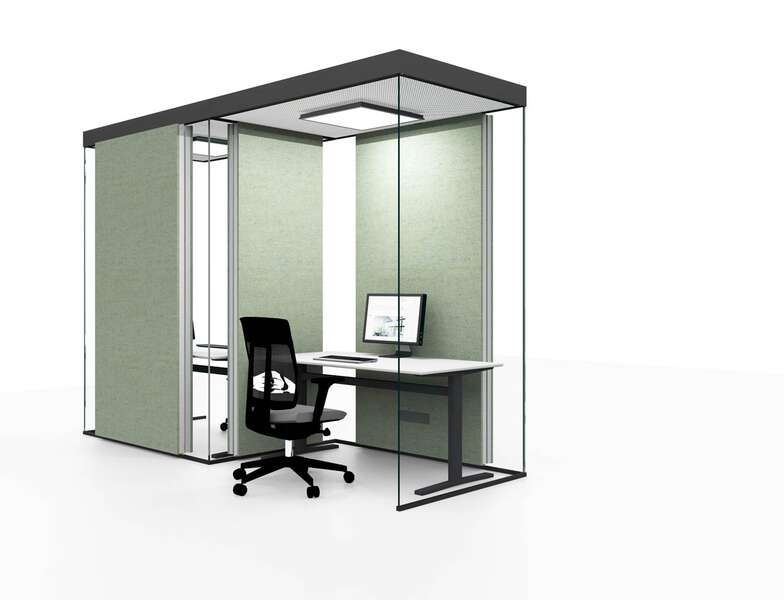

sW cross over

Acoustic screen for two AP. Table size here 1600 x 1800 mm. Other sizes available. Side walls glazed, on request also as absorber.

  • 8x glass element
  • 2x solid wall absorber / decor
  • 1x solid wall absorber / absorber
  • 2x ceiling high performance absorber
  • 2x LED panel switchable, dimmable
  • 2x ELT each 3x Schuko, 2x RJ45

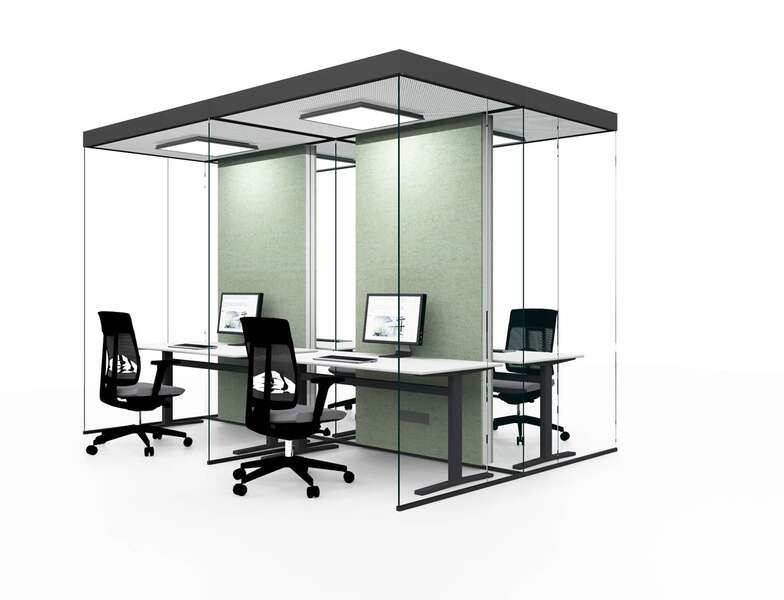

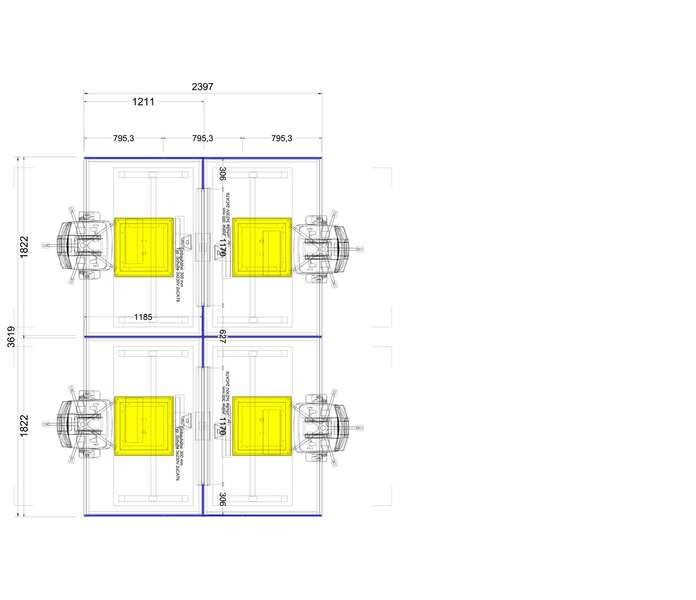

sW face to face (4 AP)

Acoustic screen for four AP. Table size here 1600 x 1800 mm. Other sizes available. Side walls glazed, on request also as absorber.

  • 13x glass element
  • 2x solid wall absorber / absorber
  • 4x ceiling high performance absorber
  • 4x LED panel switchable, dimmable
  • 4x ELT each 3x Schuko, 2x RJ45

Akustik

Nachhallzeit und Schalldämmung:

Das Akustikschirm silentWORK optimiert zwei essenzielle Komponenten der Akustik. Hoch schallabsorbierende Baugruppen sorgen für die Reduktion der Nachhallzeit, sodass das System die Lautstärke im open space reduziert. Gleichzeitig fasst der Schallschirm den Arbeitsplatz 5-seitig schalldämmend und schallabsorbierend ein, sodass nur ein geringer Teil des emittierten Schalls nach außen dringt. Die direkte Schallausbreitung wird maßgeblich eingedämmt, zwischen gegenüber liegenden Arbeitsplätzen immerhin um 22 dB. Genau das sorgt dafür, dass der Mitarbeiter in dieser Raumlösung Ruhe findet oder aber frei und ungezwungen telefonieren kann ohne andere zu stören.
